CHENLIFT (SUZHOU) MACHINERY CO., LTD.
Sales & Support:
 |
| Place of Origin: | Original from China |
| Brand Name: | CHEN LIFT |
| Certification: | CE ISO9001:2008 IPAF member |
| Model Number: | MG750-2 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wrapped in pallets/ wooden case |
| Delivery Time: | 30 days after receipt of deposit |
| Supply Ability: | 100 set/ month |
| Model: | MG750-2 | Lift Capacity: | 200kg |
|---|---|---|---|
| Platform Height Max: | 7.5m | Platform Size: | 1.00*0.70m |
| Power Source: | 2*12V/120Ah | Charger: | 24V/12A |
| Weight: | 1100kg | Working Height: | 9.5m |
| Highlight: | mobile aerial work platform,aerial work platform |
||

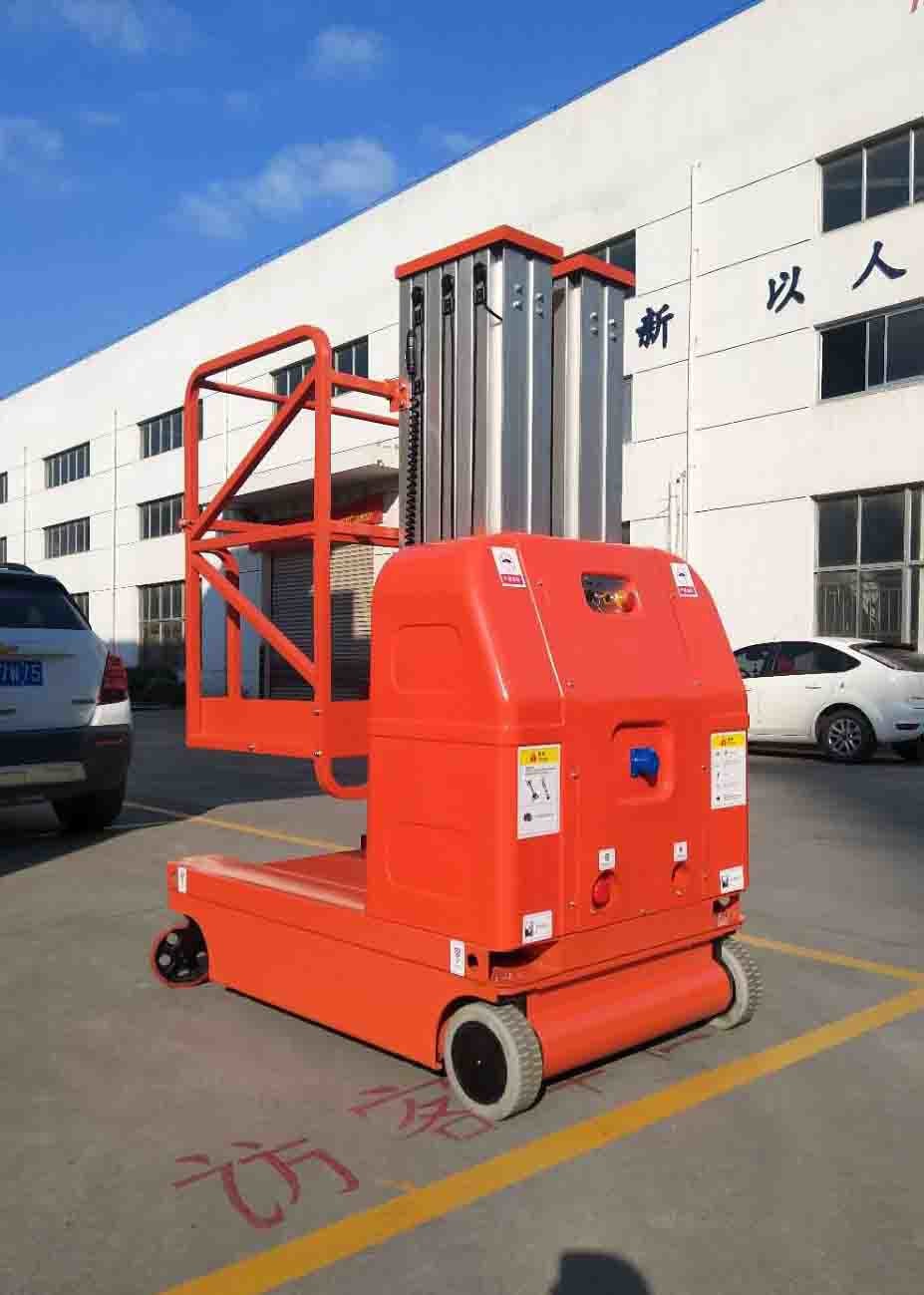

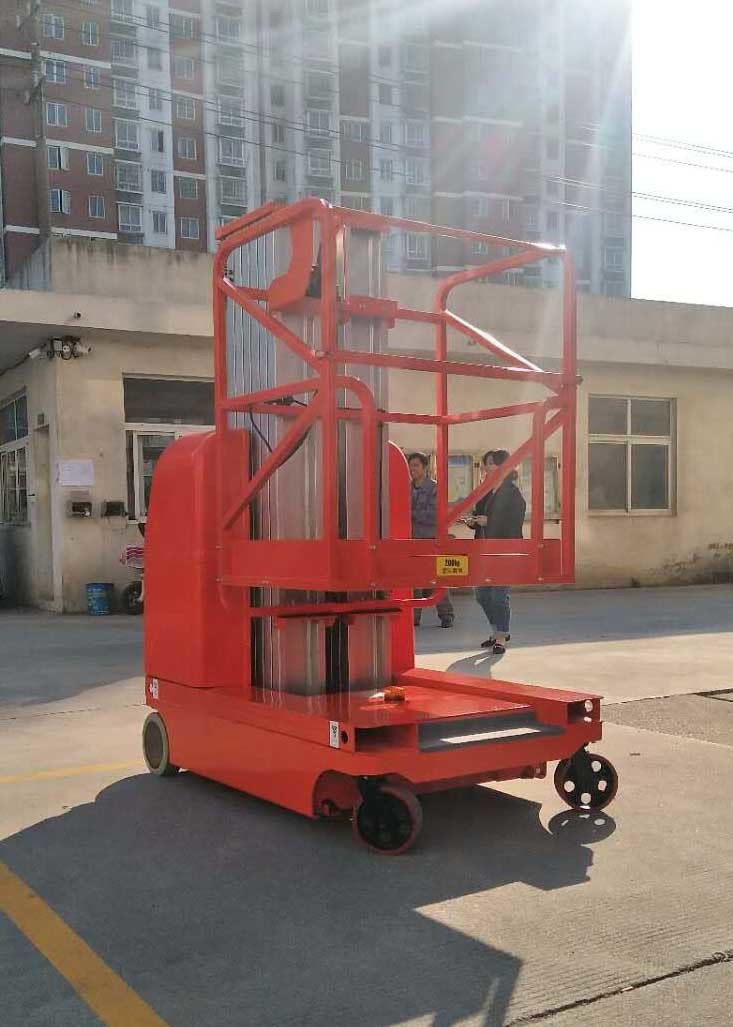

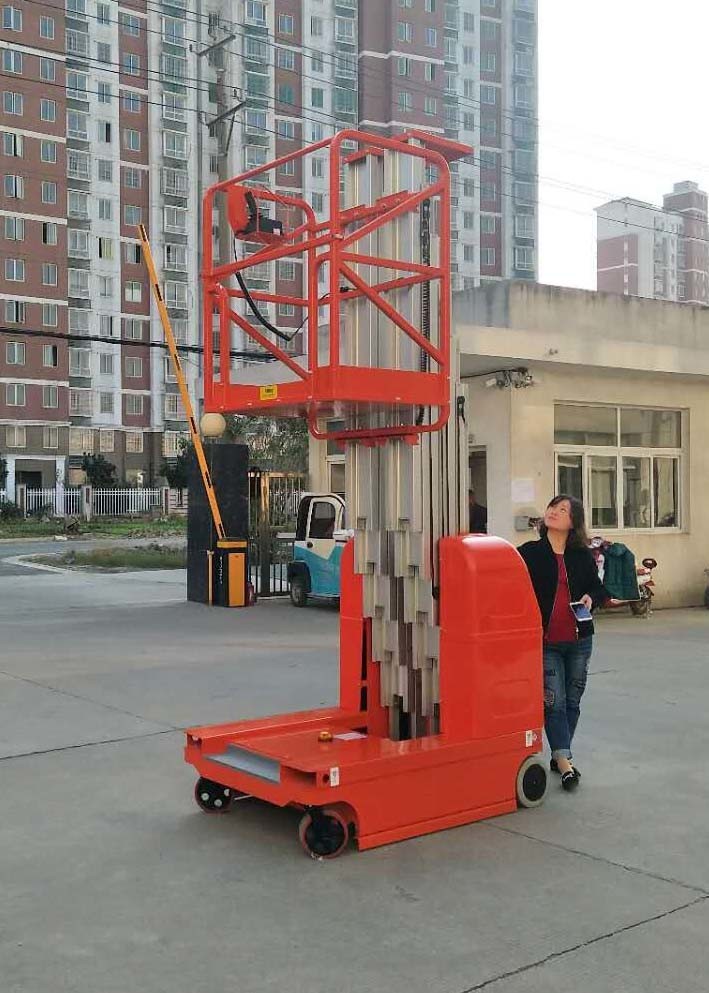

Height 7.5m Aerial Work Platform Self Propelled Vertical Lift With 2 Masts
Specification:
| Model | MG750-2 |
| Lift capacity | 200kg |
| Platform height max | 7.5 m |
| Stowed length | 1.50 m |
| Stowed width | 1.00 m |
| Stowed height | 1.99m |
| Platform size | 1.00*0.70m |
| Ground clearance | 0.05m |
| Wheelbase | 1.28m |
| Grade ability | 25% |
| Maximum working slope | 3° |
| Driving wheel | φ0.25*0.08m |
| Front tire | 8in |
| Driving motor | 2*24V/0.5kw |
| Lifting motor | 24V/2kw |
| Power source | 2ˣ12V/120Ah |
| Charger | 24V/12A |
| Weight | 1100kg |
Main Features:
1. Proportional control
2. Power supply
3. Traceless tyre
4. 4*2 Driving
5. Automatic Brake System
6. Auxiliary Lowering System
7. Anti-burst System
8. Tilting Protection System
9. Buzzer
10. Horn
11. Fork Lift Slots
12. Charging Protection System
Optional Configuration:
1. AC Power to Platform
2. Platform Working Light
3. Extension Platform
Applications:
1. Site: Work Shop, Theatre, Hospital, Library, Restaurant, Hotel Exhibition Hall etc.
2. Aerial Working Purpose: machine maintenance, painting, cleaning etc.
Factory Equipment:
Client & Exhibition:
Why choose Our Vertical Lift?
· High Quality
· Reasonable Price
· Good after Service
· 1 Year Warranty
· More Than 10 Years Experience
