CHENLIFT (SUZHOU) MACHINERY CO., LTD.
Sales & Support:
 |
| Place of Origin: | Original from China |
| Brand Name: | CHEN LIFT |
| Certification: | CE ISO9001:2008 IPAF member |
| Model Number: | MK390 |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wrapped in pallets/ wooden case |
| Delivery Time: | 30 days after receipt of deposit |
| Supply Ability: | 200 units/ month |
| Model: | MK390 | Lift Capacity: | 240kg |
|---|---|---|---|
| Platform Height Max: | 3.9m | Working Height Max: | 5.9m |
| Platform Size: | 1.15m*0.6m | Power Source: | DC12V |
| Charger: | 24V 12A | Weight: | 520kg |
| Color: | Customizable | Optional Extension: | 0.55 M |
| Highlight: | scissor lift mobile,automobile scissor lift |
||

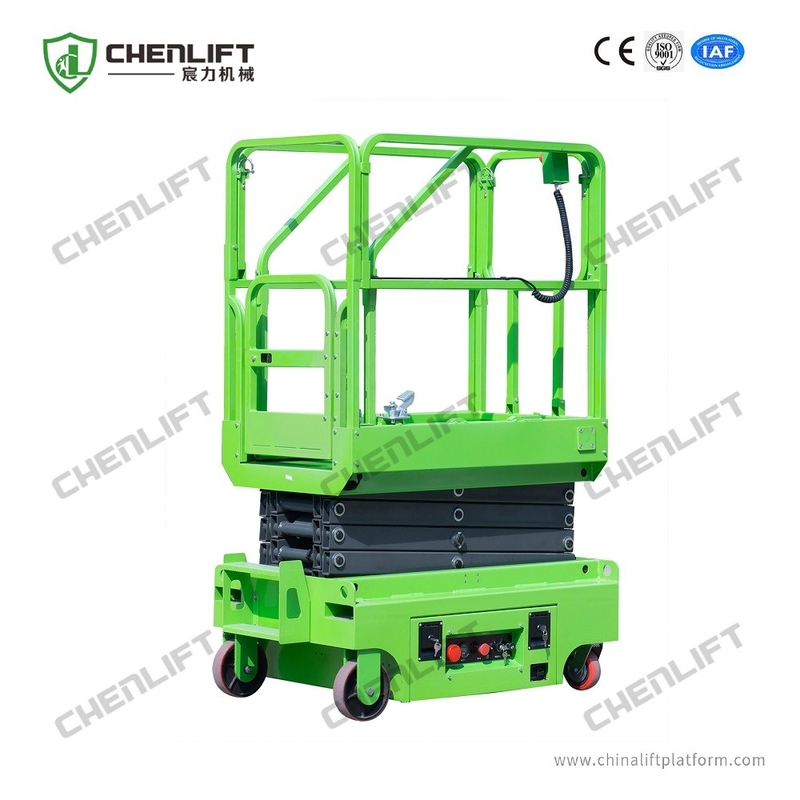

240Kg 5m 6m Working Height Mini Mobile Scissor lift With Extension Platform
240kg 5m 6m working Height mini Mobile Scissor Lift Extension Platform has compact design structure(without outrigger, so the preparation time will be less, and enhance the working efficiency) less weight(can push easily by manpower)
The operators can operate the machine up&down on platform and ground. (It lifts by battery power)
Parameters
| Loading Capacity | 240kg | ||||
| Platform Height Max | 3900mm | ||||
| Minimum Heght(rails folded) | 1520mm | ||||
| Minimum Heightt(rails unfolded) | 1920mm | ||||
| Platform Size(without extension) | 1150*600mm | ||||
| Lifting Power | 0.8kw | ||||
| Power Voltage | DC12V | ||||
| Lifting Time | 34s | ||||
| Cylinder | Ф55(1Pc) | ||||
| Battery | 80Ah | ||||
| Battery Charger | 24V 12A | ||||
| Extension Platform Size(optional) | 1150*700mm | ||||
| Ground Clearance | 50mm | ||||
| Gear Pump | 4ml/r | ||||
| Total Weight | 520kg | ||||
| Measurement | 1320*760*1520mm |
Configuration
| Electric system | Schneider contactor,SANLICO button,CHNT electrical | ||||
| Hydraulic System | Hycman power pack , sealing | ||||
| Scissor Arm Support | Hi-strength Maganese steel rectangle tube Q345 B | ||||
| Platform Surface | antiskid checkered plate | ||||
| Driving Tyre | 6inch and 8inch , two swivel and two fixed | ||||
| High-pressure Oil Pipe | double wire hydraulic intensifier rubber hose |
Main Feature
1.Pointing control of lifting up and down.
2.Manganese steel lifting arm in high strength with rectangle shape
3.Anti skid floor in platform
4 The control panels are available on the platforms and ground.
5. Fine grinding cylinder in good sealing performance
6.Neatly folding guardrails
7. Battery and battery charger in bulit
8. Optional extension platform
Safety Precautions
1.The operation voltage on the platform is 24V
2.Emergency stop button on the paltform and ground
3.Auxiliary platform lowering
4.Hose burst valve safety
5.Rain-proof design electirc cabinet
6.Foldable fence on the platform
Our Company
Our company,CHENLIFT(SUZHOU) MACHINERY CO.,LTD is founded in 2001 and is located at Suzhou City Jiangsu Province(we are the largest manufacturer in this line in Jiangsu) Our company has professional organization in manufacturing, sales and services of hydraulic lifting machinery and aerial working platform.
Our Service
1. We can design the customized the machines based on your requirement.
2. After knowing your detailed need, the right models will be recommened to you with good price.
3. Shipment can be arranged from our port to your destination port.
4. Operation video can be sent to you if needed.
5. Parts of machines can be sent to you by express within 7 days if needed.
