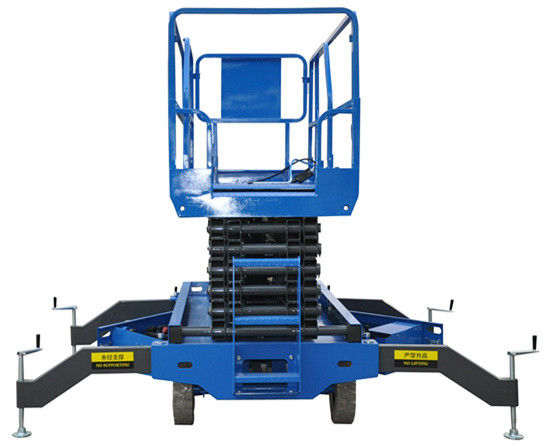

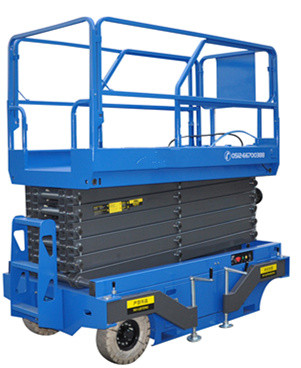

Hydraulic Mobile Scissor Lift stable structure widely use 8m Hight 300Kg Loading

Hydraulic Mobile Scissor Lift stable structure widely use 8m Hight 300Kg Loading

Description:

  Self Propelled Mobile Moveable Hydraulic Scissor Boom Lift is widely used for the equipment installations and maintenance at the following places like construction sites workshops,warehouse,granary, bus/railway stations,hotels,airports,gas station and aerial pipeline. It is mainly used to lift workers to higher places for maintenance,cleaning or installation, normally from 1350mm to 8000mm high.
Mobile Scissor Lift is used in plant, hotel, airport, station, warehouse, dock, stadium… for the high-altitude equipment installation, maintaining and cleaning the field of power facilities, over head pipes, and other lifting efficiency ideal equipment, order-at-height safety, convenience and fast.

Quick Detail:

Optional Features:

Extension Platfrom

Loading Capacity: 150Kg

Platform Size: 900*1000mm

Safety Precaution:

1.The operation voltage on the platform is 24V

2.Emergency stop button on the paltform and ground

3.Auxiliary platform lowering

4.Telescopic legs on the chassis

5.Explosion-proof device for oil tube

6.Low battery protector

7. Charging Protection system

Major Parameters

• Model: XE80R
• Loading Capacity     300kg
• Maximum Height     8000mm
• Minimum Height       1350mm
• Platform Size            2250*1150mm
• Lifting Power             2.2kw
• Power Voltage          1phase/220V/50HZ
• Lifting Time               72s
• Cylinder                    Ф100(1Pcs)
• Gear Pump                6ml/r
• Total Weight              1260kg
• Measurement            20650*1350*1350mm

Configurations:

• Electric system: Schneider contactor, SANLICO button, CHNT electrical
• Hydraulic System: Hycman brand power pack , sealing

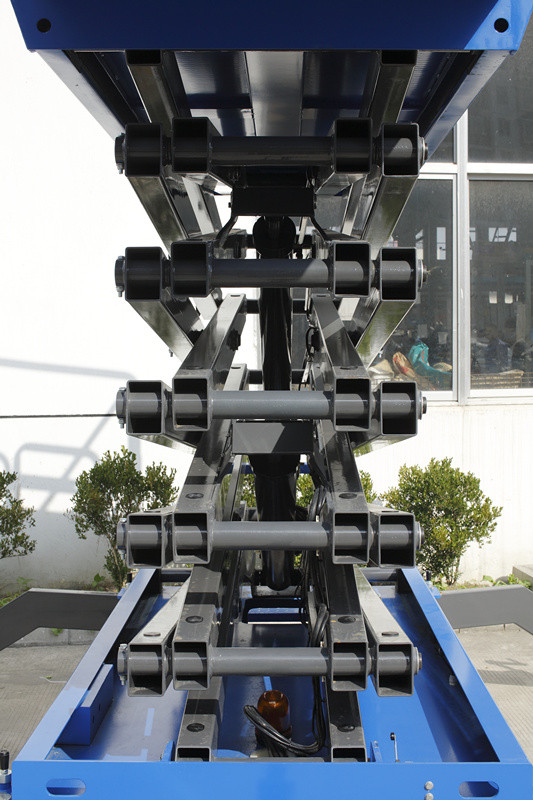

• Scissor Arm Support: Hi-strength Manganese steel rectangle tube Q345 B
• Platform Surface : Antiskid checkered plate
• Tire: Ø500-8 Inflated tires
• High-pressure Oil Pip: Double wire hydraulic intensifier rubber hose

Optional Configuration:

• Power Supply: 3phases/380V/50HZ; DC 24V ; manual pump
• Hydraulic Power Pack: Italy brand: Hydrapp/ Swiss brand: Bucher
• Extension Platform
• Rubber Solid Tire
• Flame Proof Control Cabinet

Why to choose CHEN LIFT Scissor Lift?

· High Quality

· Reasonable Price

· Good after Service

· 1 Year Warranty

· More Than 10 Years Experience

Communication with Customers

A: What is the difference from mobile scissor lift and mobile aluminum aerial work platform?

B: The main difference is from the structure and the material

The scissor lift is in scissor structure with steel material

The aerial work platform is in mast structure with aluminum material

A: How is that for quality control in your factory?

B: The quality control is strictly in accordance with ISO9001 quality management system. When the products are finished, the inspection is 100% executed strictly

1.Strict quality control system on the whole process of production

2.Imported key arts to ensure the high quality of our products

3.Advanced equipment and tools for examination and quality control

4.100% strict examining products before shipment

5.All the quality complaints and improvement requirements are always studied seriously, if reasonable, put into practice immediately.

A: What is the delivery time for your goods?

B: it is 30days after order confirmation

A: What spare parts that you can offer?

B: We provide following spare parts freely for your maintenance of the machine:

A: How long is your quality guarantee period?

B: We have one year warranty.
