CHENLIFT (SUZHOU) MACHINERY CO., LTD.
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | CHEN LIFT |
| Certification: | CE; ISO; IPAF |
| Model Number: | ME800-1 |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wrapped with Film and Packed with Pallet |
| Delivery Time: | 7 days but asap |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 200units/month |
| Model: | ME800-1 | Load Capacity: | 125kg |
|---|---|---|---|
| Max Platform Height: | 8m | Platform Size: | 0.6*0.55m |
| Overall Size: | 1.34*0.85*2m | Lifting Motor (AC): | 0.75kw |
| Color: | Customizable | ||
| Highlight: | 8m Vertical Lift,Manual Pushing Vertical Lift,Manual Pushing Vertical Mast Lift |
||

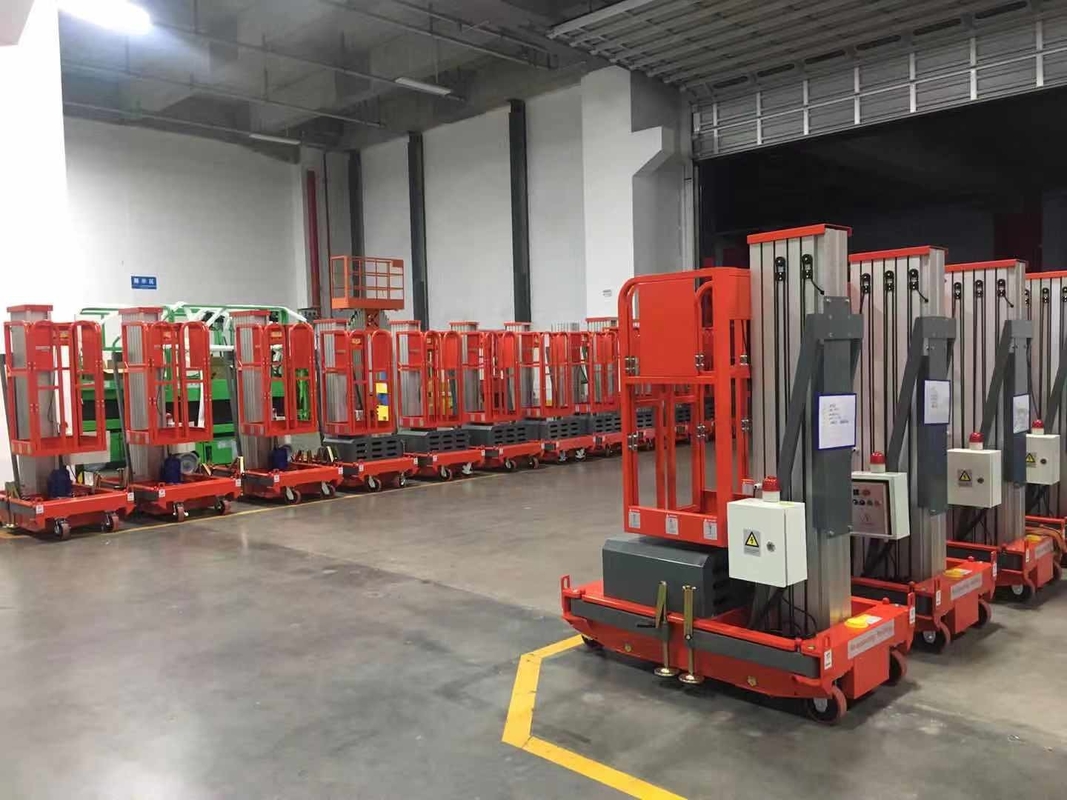

8m platform height Manual Pushing Vertical Lift
ME800-1 machine is mainly used for the installation and maintenance of the narrow spaces such as star hotels, modern workshops, business hall, hotels, lobby, restaurant, railway stations, exhibition hall and shopping malls, it is a good helper for the equipment maintenance, paint decoration; Easily going through the regular doors and elevators, of low energy consumption, no pollution, no damage to the grounds.
| Model NO. | Platform Height (m) | Loading Capacity (Kg) | Platform Size (m) |
Lifting Power (Kw) |
Weight (Kg) |
Dimension (m) |
| ME600-1 | 6 | 125 | 0.60x0.55 | 0.75 | 260 | 1.34*0.85*2 |
| ME800-1 | 8 | 125 | 0.60x0.55 | 0.75 | 300 | 1.34*0.85*2 |
| ME900-1 | 9 | 125 | 0.60x0.55 | 0.75 | 326 | 1.45*0.85*2 |
| ME1000-1 | 10 | 125 | 0.60x0.55 | 0.75 | 400 | 1.45*0.85*2 |
Upgraded Configuration
With Double Hinge Door
With Deadman Switch
Invisiable Electirc Cabinet
Electrical Wire with Number for easily maintenance
With Big Size Aluminum Material Level Gauge
With Operation Manual Storage Box
Main Features:
1. Most rigid aluminum alloy profile
2. Auxiliary platform lowering
3. Multi-guide pulley on mast
4. Durable base system
5. Chassis with level gauge
6. DC working power on the platform
7. Easily rolls through a narrow space
8. Emergency stop button
9. Over load protection
10. Built-in pressure release valve
11. Dual activated up/down switch
12. Locking Key Switch
Optional Configuration:
1. DC24V
2. Oversea Brand Hydraulic Power Pack
3. Explosion-Proof System
4. Stainless Steel Fence
5. Motorized Device
Contact Person: Mr. Aijun Liu
Tel: 0086-13951119762
Fax: 86-512-67339762
