| Place of Origin: | Original of China |
| Brand Name: | CHEN LIFT |
| Certification: | CE ISO9001:2008 IPAF member |
| Model Number: | MX600SN |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wrapped in pallets/ wooden case |
| Delivery Time: | 30 day after receipt of deposit |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100 sets/ month |
| Model: | MX600SN | Material: | Q345 Steel |
|---|---|---|---|
| Platform Size: | 2.27*0.81m | Measurement: | 2.43*0.81*1.85m |
| Battery: | 4*6V/225Ah | Total Weight: | 1945kg |
| Color: | Customizable | Driving: | Hydraulic |
| Loading Capacity: | 230kg | Extension Loading: | 113kg |
| Highlight: | self propelled work platform,self propelled lift |
||

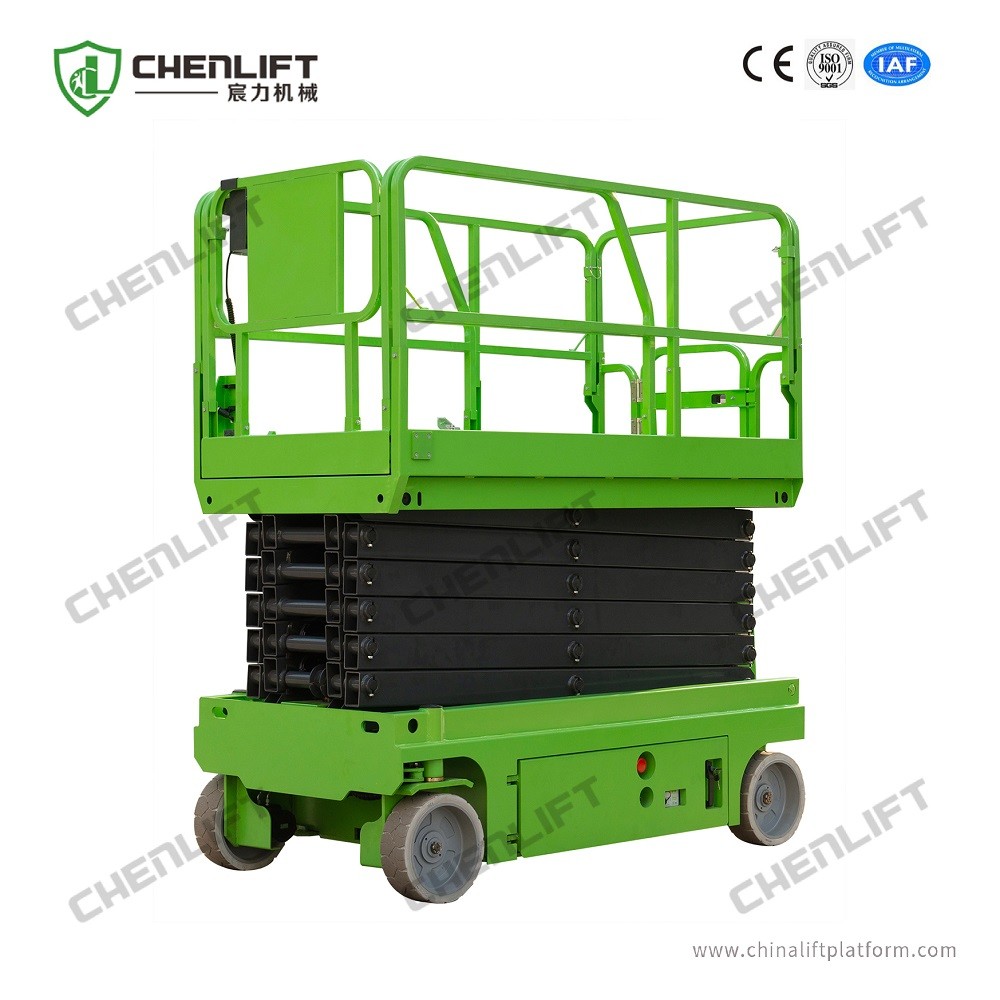

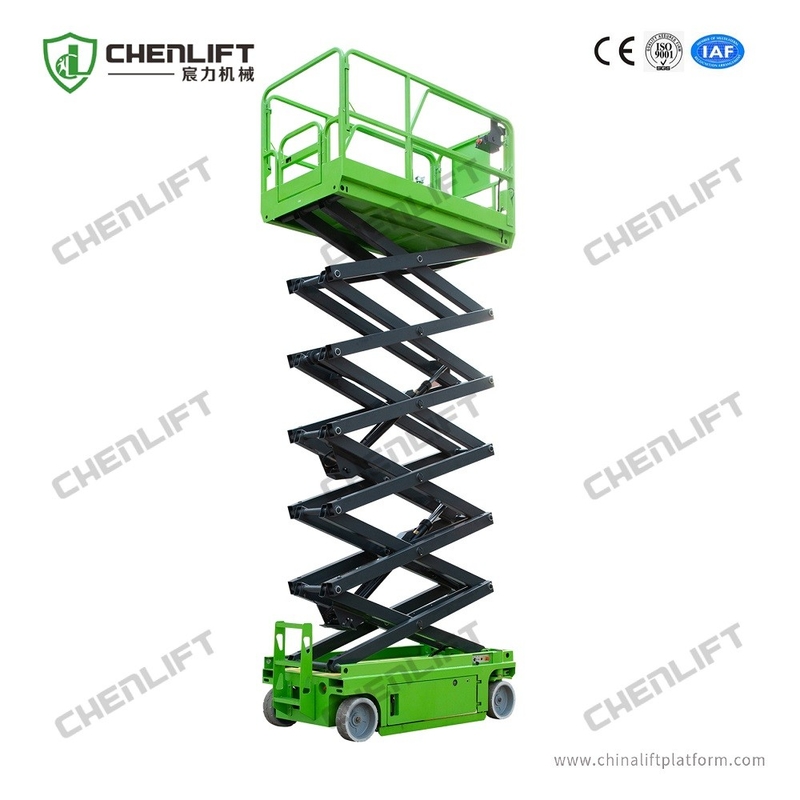

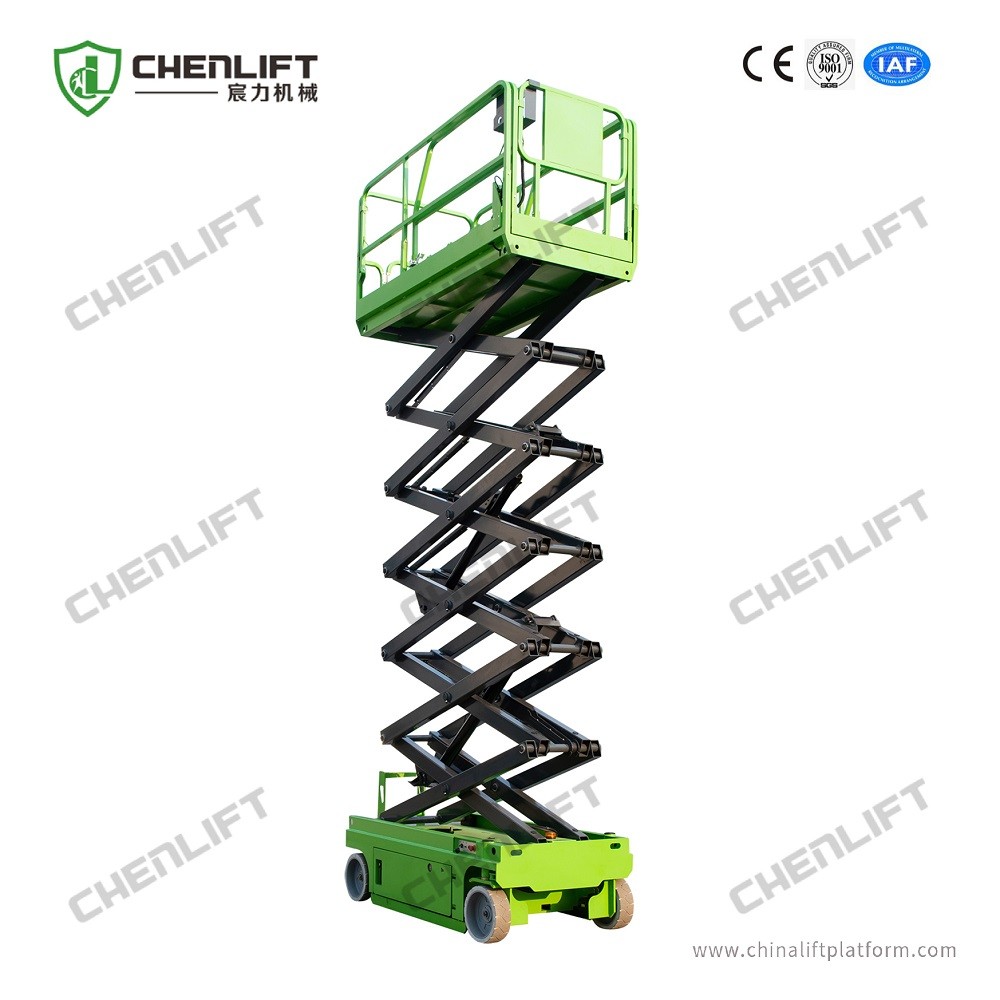

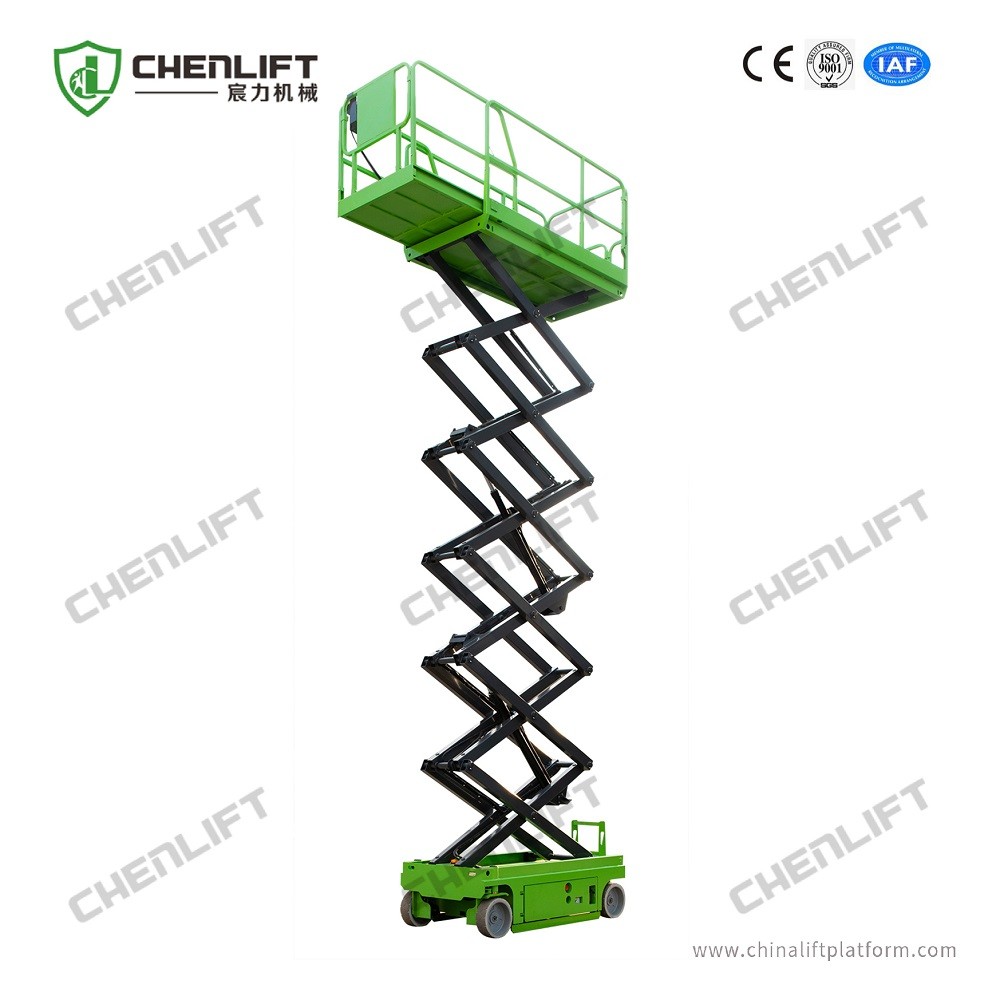

Aerial work platform Hydraulic Self Propelled Scissor lift max 8m 230kg
Description:
It does not need any outriggers, one man operates on the working platforms, moving forward, backward, left turning, right turning, auto-braking, lifting up and lowering down are easily operated. Short chargeable time and long dual time of the battery. With humanized design, the machine can be easily through the standard double doorways. Spacious working platforms, smooth working condition and high working efficiency. Solid rough tire all the machine to run more steadily and safely on a complex ground. It is widely used for aerial installation & maintenance of the working sites without power supply and with smooth working grounds,such as hotels, grand hall, sport statium. factory, workshops, warehouse, granary, bus/railway
Parameters
|
Model |
MX600SN |
|
Load capacity |
230kg |
|
Extension load capacity |
113kg |
|
Max Worker number |
2 |
|
Working height |
8m |
|
Platform floor height |
6m |
|
Measurement |
2.43*0.81*1.85m |
|
Extension platform size |
2.27*0.81m |
|
Ground clearance(stowed) |
0.1m |
|
Ground clearance(raised) |
0.019m |
| Wheel base | 1.87m |
|
Turning Radius(inside) |
0m |
|
Turning Radius(outside) |
2.10m |
| Drive motor | 24V/3.3kw |
| Lifting motor | 24V/3.3kw |
| Travelling speed(stowed) | 3.0km/h |
| Travelling speed(raised) | 1.0km/h |
| Lifting/ Lowering time | 35/25sec |
| Batteries | 4*6V/225Ah |
| Charger | 24V/ 30A |
| Gradeability | 25% |
| Max working slop | 2°/3° |
| Tyre | 15*5 |
| Weight | 1945kg |
Flexible Operation
Platform control by joystick, advancing, backwards, right turning and left turning, auto-braking. Fully proportional control, either lifting or moving, easy operating. Zero inside turning radius for travelling in narrow space, and also facilitate changing positions.
Key-type lock sliding
Key-type lock sliding door to protect misuse by not equipment keeper, particularly suitable for protect the electrical components when the rent out
Platform Swing Gate
Platform Swing Gate make enter and out space more large, no restrictions to the guardrails.
Fold-able guardrail make the machine can be easily through standard doors when move during working area.
Platform work light (optional)
The professional platform work lights allows construction of the user easier lighting and operating
Airway tube to platform
User can be optional airway tube to platform to make sure pneumatic tools and equipment can be used in the platform
Traceless tire
Configured with traceless tire to protect the ground surface and suitable for indoor application. The wheels and tires are very very tough and rigid able to travel through uneven terrain and rough surface
Motion alarm and Horn
The machine is equipped with motion alarm and horn when moving to remind around person to take necessary precaution.
Easy Maintenance
It gives full consideration to the convenience of the user in their daily work. Central management with side opening drawer for hydraulic pump, batteries and charger. It has fault diagnosis system help the user can find the failure point one time. And also reduce the losses caused by forgotten maintenance.
Safety Precaution:
Why choose CHEN LIFT Self Propelled Scissor Lift?
· High Quality product
· Reasonable Price
· Easy payment mode
· Timely delivery
· Good after Service
· Client-centric approach
· One year warranty
Thank you for your reading and welcome your inquiry. We will respond you as soon as possible.
